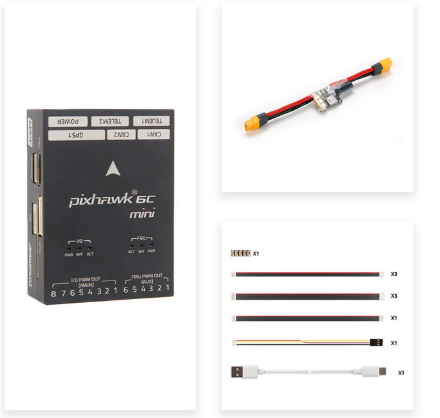

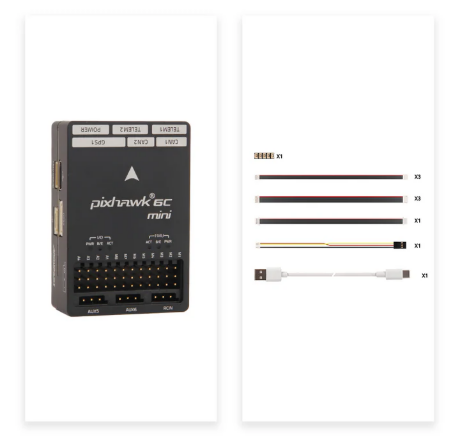

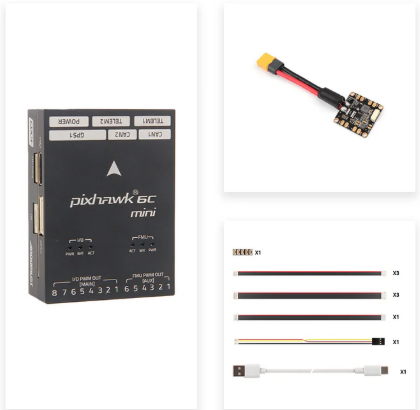

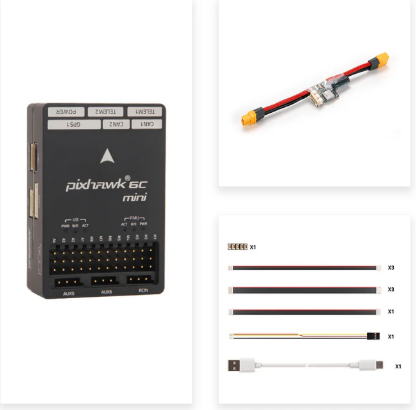

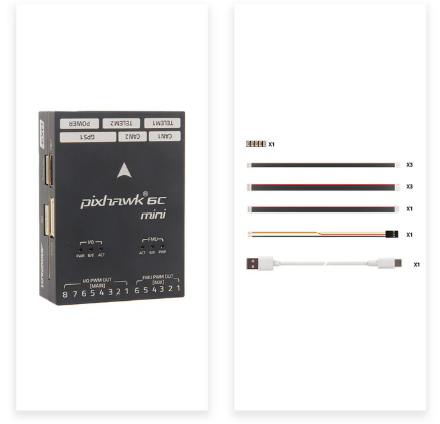

Holybro Pixhawk® 6C Mini
- Regular price
- $246.98
- Sale price
- $246.98
- Regular price
-
Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.
Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.
When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.
We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.
You will also be asked to provide an email address, to which we will send confirmation that your order was placed.
Couldn't load pickup availability
- SKU:
- Brand: Holybro
- Type: Electronics
- Availability: In Stock
Share
The Holybro Pixhawk® 6C Mini is a compact, high-performance flight controller designed for drones and autonomous vehicles. Based on the Pixhawk FMUv6C open standard, it integrates advanced processing capabilities and sensor technologies to deliver reliable and precise control in a smaller form factor. This makes it ideal for applications where space and weight are critical considerations.
Key Features
High-Performance Processor: Equipped with an STM32H743 32-bit Arm® Cortex®-M7 processor running at 480 MHz, featuring 2MB flash memory and 1MB SRAM for efficient and reliable operation.
Redundant IMUs: Incorporates dual IMUs (ICM-42688-P and BMI055) with mechanical vibration isolation and temperature control, enhancing flight stability and reliability.
Integrated Sensor Suite: Includes a magnetometer (IST8310) and a barometer (MS5611) for accurate navigation and altitude measurements.
Compact Design: The miniaturized form factor (53.3 x 39 x 16.2 mm) and lightweight design (39.2g) make it suitable for small drones without compromising performance.
Flexible Connectivity: Offers 14 PWM servo outputs (8 from IO, 6 from FMU), two general-purpose serial ports, two GPS ports, one I2C port, and two CAN buses, providing versatile integration options.
Wide Voltage Range: Supports a servo rail input voltage range of 0~36V, accommodating various power systems.
Operating Temperature: Designed to function reliably in temperatures ranging from -40°C to 85°C, suitable for diverse environmental conditions.
Specifications
Parameter Value
FMU Processor STM32H743, 32-bit Arm® Cortex®-M7, 480 MHz
IO Processor STM32F103, 32-bit Arm® Cortex®-M3, 72 MHz
Flash Memory 2MB
SRAM 1MB
IMUs ICM-42688-P and BMI055
Magnetometer IST8310
Barometer MS5611
Max Input Voltage 6V
USB Power Input 4.75~5.25V
Servo Rail Input Voltage 0~36V
TELEM1 Max Output Current 1A
Combined Port Output Current 1A
Dimensions 53.3 x 39 x 16.2 mm
Weight 39.2g
Operating Temperature -40°C to 85°C
Applications
The Pixhawk 6C Mini is suitable for a variety of applications, including:
Small drones and UAVs where space and weight are limited.
Autonomous vehicles requiring precise navigation and control.
Research and development projects in academic and commercial settings.
Robotics applications demanding reliable and compact flight control solutions
