Pixhawk Cube Orange Standard Set (ADS Carrier Board)
- Regular price
- $639.99
- Sale price
- $639.99
- Regular price
-
Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.
Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.
When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.
We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.
You will also be asked to provide an email address, to which we will send confirmation that your order was placed.
Couldn't load pickup availability
- SKU:
- Brand: Unmanned Tech
- Type:
- Availability: In Stock
Share

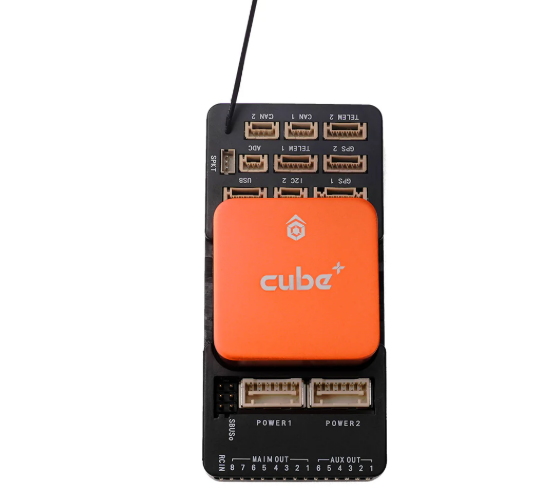

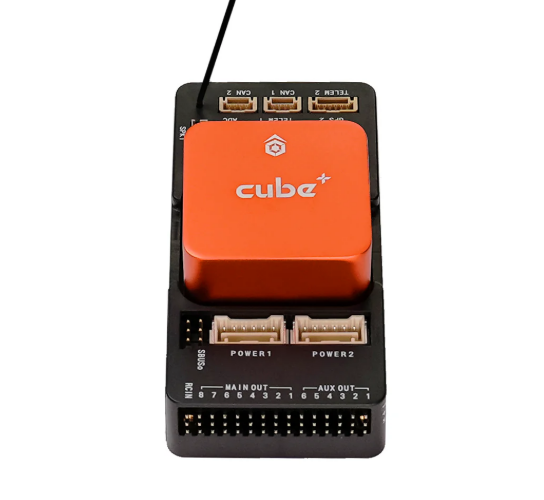

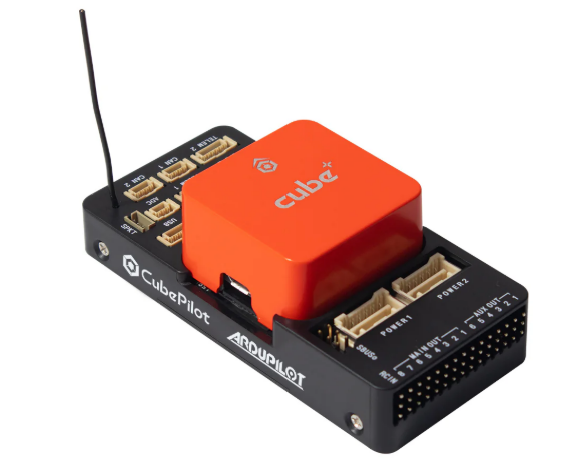

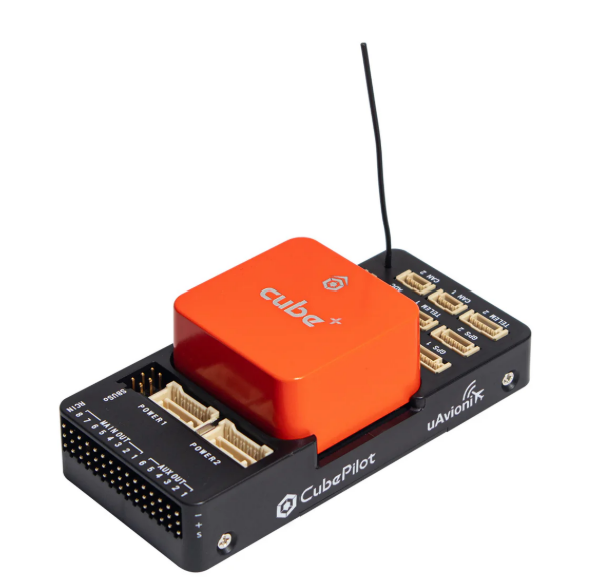

The Cube Orange+ Standard Set is a high-performance open-source autopilot system designed for professional UAVs, drones, and robotics applications. Featuring the powerful STM32H757 dual-core processor and integrated uAvionix 1090MHz ADS-B receiver, this system offers enhanced situational awareness and flight safety. The Cube Orange+ is an evolution of the Pixhawk 2.1 platform, providing robust performance and flexibility for various unmanned systems.
Key Features
High-Performance Processing: Equipped with the STM32H757 dual-core processor (Cortex-M7 at 400 MHz and Cortex-M4 at 200 MHz), offering 2 MB Flash and 1 MB RAM for efficient and reliable operation.
Triple Redundant IMUs: Incorporates three IMUs with mechanical vibration isolation and temperature control, enhancing flight stability and reliability.
Integrated ADS-B Receiver: The built-in uAvionix 1090MHz ADS-B receiver provides real-time information about nearby manned aircraft, enabling automatic avoidance within user-defined exclusion zones.
Flexible PWM Output: Supports switching between 3.3V and 5V PWM signal levels via ground control station software, ensuring compatibility with various peripherals.
Comprehensive Sensor Suite: Includes accelerometer, gyroscope, compass, and barometric pressure sensors for precise navigation and control.
Robust Construction: The Cube housing is made of CNC aluminum alloy, and the ADS-B carrier board is constructed with ABS molding, ensuring durability and protection.
Wide Compatibility: Supports ArduPilot and PX4 open-source flight controller firmware, making it suitable for fixed-wing planes, multirotors, helicopters, VTOLs, rovers, boats, and submarines.
Specifications
Parameter   Value
Main Processor   STM32H757 Dual-Core (M7 @ 400 MHz, M4 @ 200 MHz)
Memory   2 MB Flash, 1 MB RAM
IMUs   Triple redundant with vibration isolation and temperature control
ADS-B Receiver   uAvionix 1090MHz ADS-B IN
Power Input Voltage   4.1 – 5.7 V
Rated Input Current   2.5 A
USB Port Input Voltage   4 – 5.7 V
USB Port Rated Current   250 mA
Servo Rail Input Voltage   3.3 V / 5 V
Operating Temperature   -10 °C to +55 °C
Cube Housing Material   CNC Aluminum Alloy
Carrier Board Material   ABS Molding
Dimensions (Cube) Â Â 38.4 x 38.4 x 22 mm

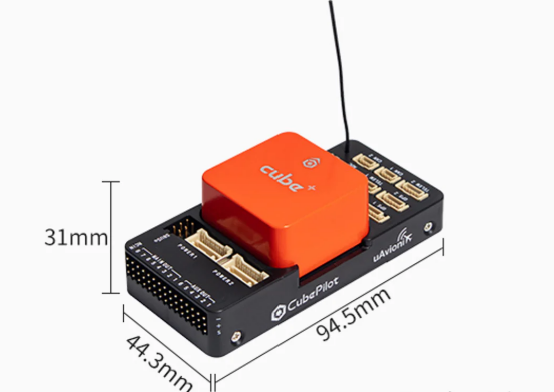

Dimensions (Carrier Board) Â Â 94.5 x 44.3 x 31 mm
Weight   73 g
Firmware Support   ArduPilot, PX4
Vehicle Compatibility   Fixed-wing, Multirotor, Helicopter, VTOL, Rover, Boat, Submarine

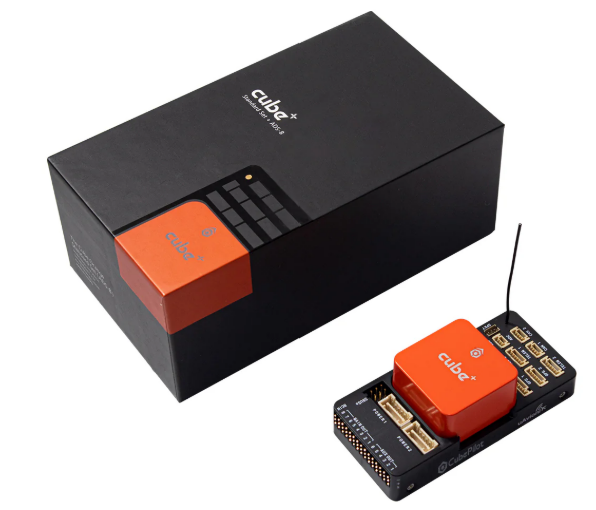

What's Included
1x Cube Orange+
1x ADS-B Carrier Board
1x Power Brick Mini
1x I2C Board
1x Buzzer Cable
2x CAN Cables
1x Power Brick Mini Cable
1x Micro USB Cable
2x I2C Cables
Mounting Screws
3x 3M Large Stickers
2x 3M Medium Sticker
Applications
The Cube Orange+ Standard Set is ideal for:
Professional UAVs and drones requiring advanced flight control and safety features.
Robotics applications needing precise navigation and control.
Research and development projects involving autonomous vehicles.
aerosystemswest.com
Integration into custom unmanned systems across various industries.
