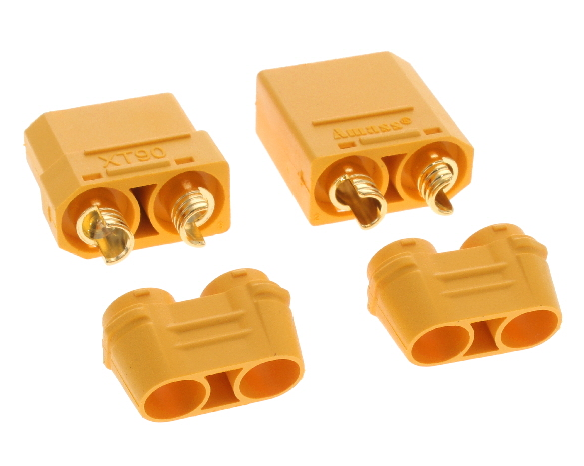

The DFRobot FIT0588 is a high-quality XT90 male and female bullet connector set, engineered for applications requiring robust and reliable power connections. Featuring true gold-plated banana plugs and a cross-slot design, this connector ensures a larger contact area, supporting continuous currents up to 40A and peak currents up to 90A. Its compact design makes it ideal for space-constrained environments.
Key Features
High Current Handling: Supports continuous current up to 40A and peak current up to 90A, suitable for high-power applications.
Gold-Plated Contacts: True gold plating enhances conductivity and reduces contact resistance to approximately 0.3 milliohms.
Durable Construction: The connector's shell is made from PA (polyamide) material, offering excellent insulation and durability.
Flame Retardant: Meets UL94 V-0 standards, ensuring high resistance to fire.
User-Friendly Design: Features a cross-slot design for a larger contact area and a hollow structure for improved heat dissipation.
Wide Operating Temperature: Functions reliably in temperatures ranging from -20°C to 120°C.
Longevity: Designed for up to 1,000 mating cycles, ensuring long-term reliability.
Specifications
Connector Type: XT90 Male & Female Bullet Connector
Rated Voltage: DC 500V
Rated Current: 40A
Peak Current: 90A
Contact Resistance: Approximately 0.3 milliohms
Insulation Material: PA (Polyamide)
Metal Contact Material: Gold-plated copper
Flame Retardant Rating: UL94 V-0
Recommended Wire Gauge: 10 AWG
Operating Temperature: -20°C to 120°C
Mating Cycles: Up to 1,000 times
Certifications: UL and CE certified
Package Includes
1 × XT90 Male Connector
T90 Female Connector
Applications
Ideal for high-current applications such as:
RC vehicles and drones
Electric bicycles and scooters
High-power battery packs
DIY electronics requiring reliable power connections
