Holybro M9N GPS Module

$204.96
$204.96
Write a Review
Earn 102 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.
Add to wishlist Added to wishlist
Terms & conditions

Order in the next
to get it by
Ask us any Question
Details

The Holybro M9N GPS Module is a high-performance, multi-constellation GNSS receiver designed for drones and robotic applications requiring precise navigation and positioning. Powered by the u-blox M9N chipset, it concurrently tracks four major GNSS systems: GPS, Galileo, GLONASS, and BeiDou, enhancing accuracy and reliability even in challenging environments.

Key Features

  • Multi-Constellation GNSS Support: Simultaneous reception of GPS L1, Galileo E1, GLONASS L1, and BeiDou B1 signals for improved positioning accuracy.

  • High Sensitivity: Offers a navigation sensitivity of –167 dBm, ensuring reliable signal acquisition in various conditions.

  • Fast Cold Start: Achieves a cold start time of approximately 26 seconds, facilitating quick readiness for operation.

  • Integrated Compass: Equipped with the IST8310 compass for accurate heading information.

  • User Interface: Features a tri-colored LED indicator, onboard buzzer, and safety switch for intuitive status monitoring and enhanced safety.

  • High-Gain Antenna: Includes a 25 x 25 x 4 mm ceramic patch antenna with omnidirectional radiation pattern for flexible installation.

  • Power Efficiency: Consumes less than 150 mA at 5V, making it suitable for battery-powered applications.

  • Robust Design: Encased in a protective housing with a diameter of 50 mm and a weight of 32 grams, ensuring durability without compromising on weight.

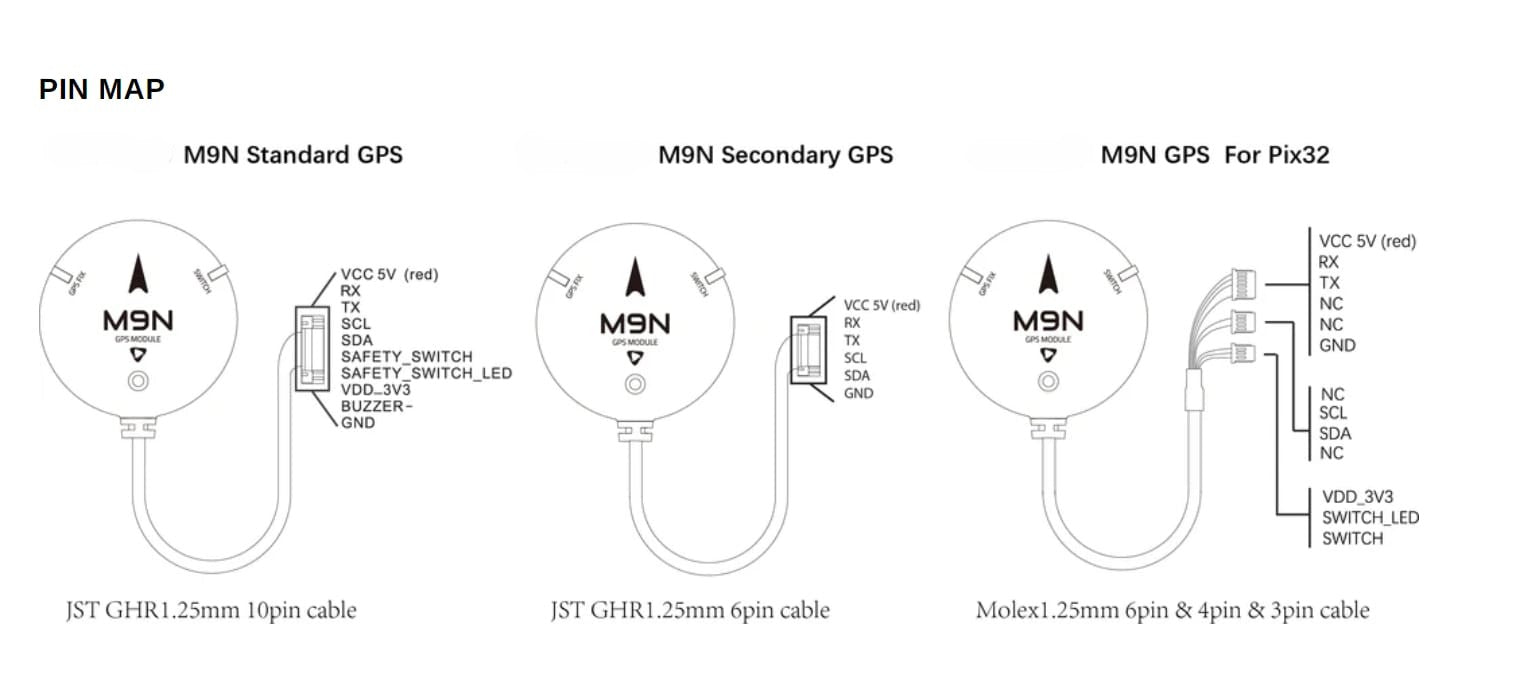

  • Connectivity Options: Available with multiple connector variants (e.g., JST GHR1.25mm 10-pin) to ensure compatibility with various flight controllers, including Pixhawk series.
