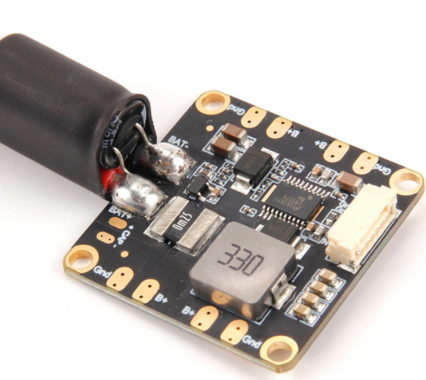

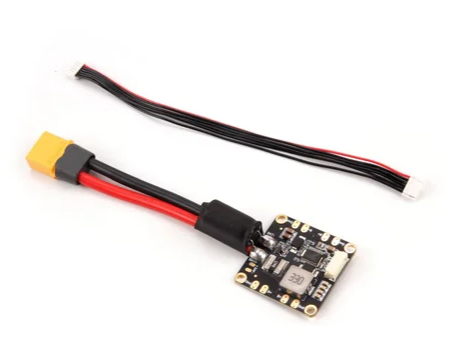

The Holybro PM06 V2 Power Module is a compact and efficient power distribution board (PDB) designed for Pixhawk and PX4-based drone systems. Featuring an integrated 5V/2A BEC, XT60 input connector, and 4 ESC power outputs, this module provides clean and reliable power to your flight controller and ESCs. Supporting up to 60A total current and compatible with 2–6S LiPo batteries, the PM06 V2 is ideal for compact UAV applications that require efficient power management and telemetry current sensing.
Key Features
-
Integrated Power Distribution: Supplies regulated 5.2V power to the flight controller and distributes power to four ESCs.
-
Telemetry Support: Provides real-time current consumption and battery voltage measurements via analog signal through a 6-pin JST-GH cable.
-
High Current Handling: PCB continuous current rating of 70A and burst current rating of 120A (<60 seconds), ensuring robust power distribution.
-
Wide Input Voltage Range: Supports 2S to 14S LiPo batteries, accommodating various drone power requirements.
-
Compact and Lightweight: Dimensions of 35x35x5mm and a weight of 24g minimize impact on drone payload.
-
Pre-soldered Components: Comes with pre-soldered XT60 connector, 12AWG wires, and a 220uF 63V capacitor for easy installation.
