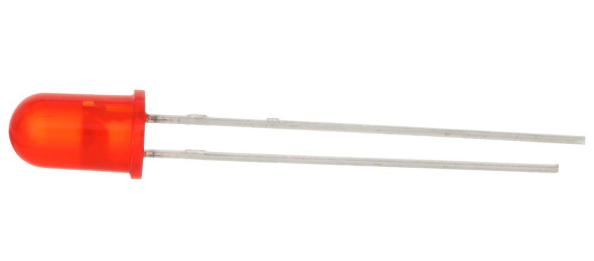

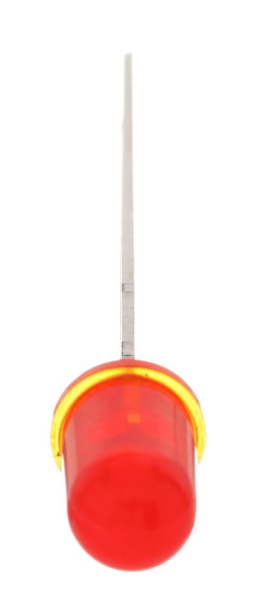

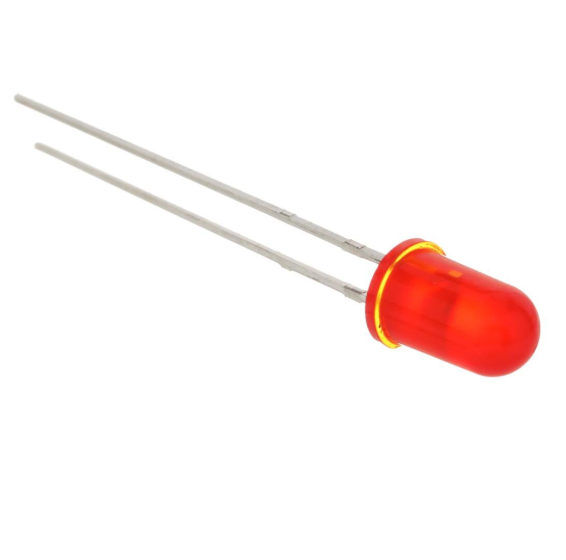

Single Color LEDs Round Thru-Hole (EALP05RDHRA0)
- Regular price
- $0.38
- Sale price
- $0.38
- Regular price
-
Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.
Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.
When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.
We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.
You will also be asked to provide an email address, to which we will send confirmation that your order was placed.
Couldn't load pickup availability
- SKU:
- Brand: Unmanned Tech
- Type:
- Availability: In Stock
Share
Key Specifications
-
Emitted Color: Brilliant Red
-
Dominant Wavelength: 624 nm
-
Peak Wavelength: 632 nm
-
Luminous Intensity: 250 to 500 mcd (typical at 20 mA)
-
Viewing Angle: 40°
-
Forward Voltage (V<sub>F</sub>): 1.7 V (min) to 2.4 V (max)
-
Forward Current (I<sub>F</sub>): 20 mA (typical), 25 mA (max continuous)
-
Peak Forward Current: 60 mA (1/10 duty cycle at 1 kHz)
-
Power Dissipation: 60 mW
-
Operating Temperature Range: -40°C to +85°C
-
Storage Temperature Range: -40°C to +100°C
-
Package Dimensions: 5.75 mm (L) x 5.75 mm (W) x 8.6 mm (H)
-
Lens Type: Red Diffused
-
Mounting Style: Through-Hole
-
Compliance: RoHS, REACH, and Halogen-Free
