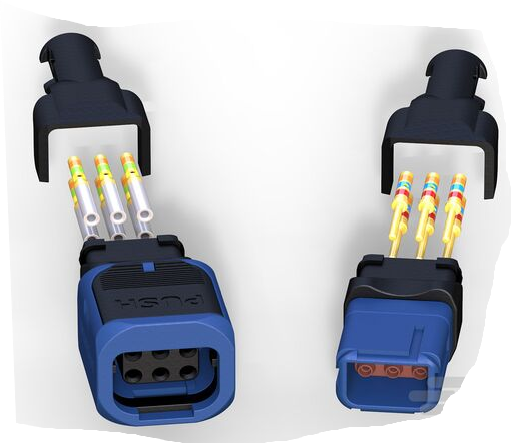

The TE Connectivity DEUTSCH D369-P99-NS1 is a 9-position rectangular plug connector designed for wire-to-wire applications in demanding environments. Part of the DEUTSCH 369 Series, it offers a compact, lightweight, and robust solution suitable for aerospace, defense, and industrial applications. Its sealed design ensures reliable performance in harsh conditions.
Key Features
9-Position Configuration: Accommodates 9 contacts in a 3-row layout with a 2.54 mm (0.1 in) pitch.
Crimp Termination: Supports 22–28 AWG wires using crimp-style sockets for secure connections.
Sealed Design: Features triple-barrier wire seals and interfacial grommet seals, achieving IP65 protection against dust and water ingress.
High-Performance Materials: Constructed from composite materials for durability and resistance to environmental factors.
Gold-Plated Contacts: Ensures low contact resistance and corrosion resistance for reliable electrical performance.
Keyed Mating Alignment: Prevents misalignment during connection, enhancing reliability.
Button Latch Retention: Provides secure mating and easy unmating without additional tools.
Specifications
Connector Type: Plug
Contact Type: Female Socket
Number of Positions: 9
Number of Rows: 3
Pitch: 2.54 mm (0.1 in)
Mounting Type: Free Hanging (In-Line)
Termination Style: Crimp
Wire Gauge: 22–28 AWG
Contact Finish: Gold
Shell Material: Composite
Operating Voltage: Up to 400 VAC / 500 VDC
Current Rating: Up to 5 A
Operating Temperature Range: -55°C to +175°C
Ingress Protection: IP65
Color: Black
Applications
Ideal for use in:
Aerospace systems
Military and defense equipment
Industrial machinery
Transportation systems
Harsh environment applications requiring reliable sealed connections
