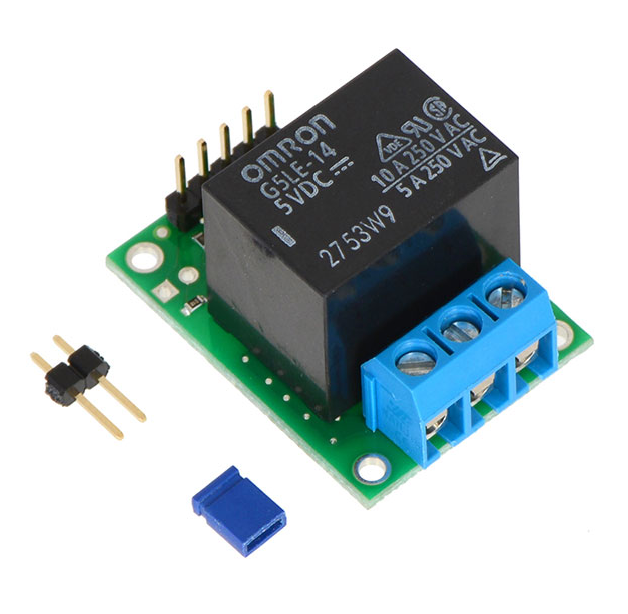

The Pololu RC Switch with Relay (Assembled) is a versatile module designed to control large, electrically isolated loads using standard radio control (RC) signals. It features a single-pole, double-throw (SPDT) Omron G5LE-14-DC5 relay rated for up to 10 A, making it suitable for applications such as activating lights, motors, or irrigation valves in RC systems.
Key Features
High Current Handling: Equipped with a 5V Omron G5LE-14-DC5 relay capable of switching up to 10 A under most conditions.
Configurable Activation: The module measures incoming RC pulses and activates the relay based on a user-configurable threshold, with a default activation at approximately 1700 μs. A learning mode allows customization of the threshold and activation direction.
Safe-Start Feature: Incorporates a safe-start mechanism to minimize the risk of unintended activation upon power-up.
Integrated Feedback: Includes a yellow indicator LED and two output pins: 'GOOD' indicates the presence of a valid RC signal, and 'OUT' reflects the relay's activation state.
To-Use Assembly: Ships fully assembled with the relay, terminal block, and straight male header pins soldered in, facilitating immediate integration into RC systems without additional soldering.
Specifications
Relay Type: SPDT (Omron G5LE-14-DC5)
Relay Voltage: 5V
Maximum Current: 10 A
Dimensions: 1″ × 1.35″ × 0.9″ (25.4 mm × 34.3 mm × 22.9 mm)
Weight: 17 g
Pulse Width Range: 0.5–2.5 ms
Pulse Frequency Range: 10–330 Hz
Applications
Ideal for hobbyists and professionals looking to control high-current devices through RC systems, such as:
Activating auxiliary lights or motors in RC vehicles
Controlling irrigation valves in remote setups
Integrating into custom automation projects requiring isolated load control
