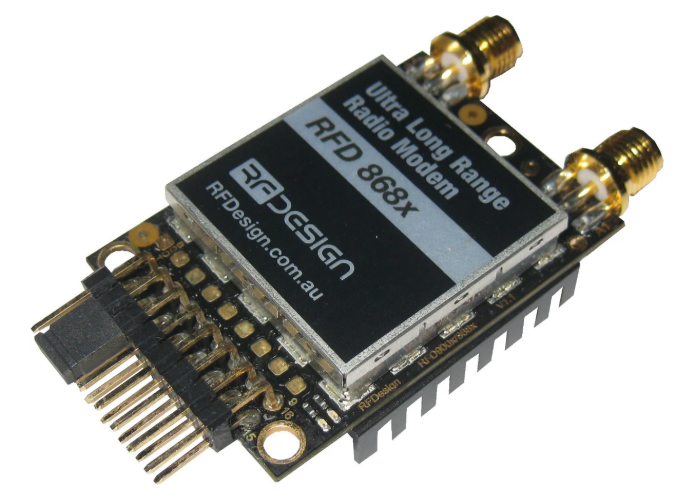

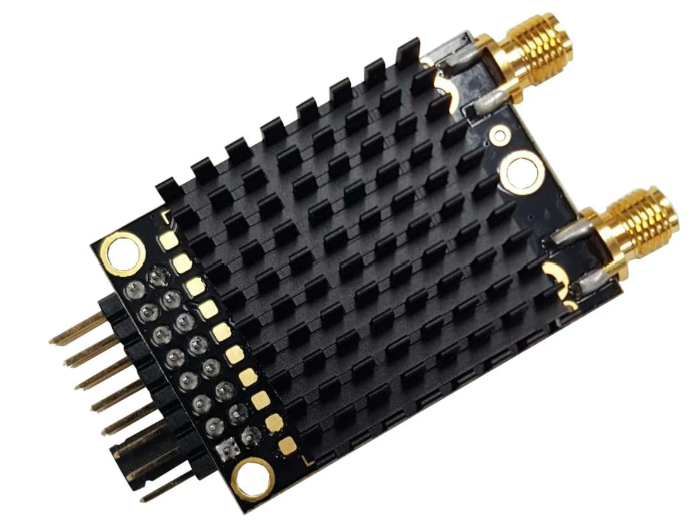

RFD868x Modem

$239.40
$239.40
Write a Review
Earn 119 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Terms & conditions

Order in the next
to get it by
Ask us any Question
Details

Key Features

  • Processor: 32-bit ARM Cortex core

  • Frequency Range: 865–870 MHz

  • Output Power: 1W (+30 dBm), adjustable in 1 dB increments

  • Air Data Rates: Selectable rates from 12 to 750 kbps; default at 64 kbps

  • UART Data Rates: Configurable from 1,200 to 1,000,000 baud; default at 57,600 baud

  • Receive Sensitivity: Up to -111 dBm at 12 kbps

  • Interfaces:

    • 2 x RP-SMA RF connectors with diversity switching

    • Logic-level TTL serial interface (+3.3 V)

    • 6 general-purpose I/O pins (digital capable)

  • Power Requirements: +5 V nominal (3.5 V min to 5.5 V max), ~800 mA peak at maximum transmit power

  • Physical Dimensions: 30 mm (W) x 57 mm (L) x 12.8 mm (H)

  • Weight: Approximately 14.5 grams

  • Operating Temperature Range: -40°C to +85°C; tested operational from -73°C to +123°C

  • Firmware: Re-implemented SiK firmware with field-upgradable capabilities

  • Additional Features:

    • AES hardware-accelerated encryption

    • Full ESD protection and filtering on all I/O ports

    • RC PPM passthrough with simultaneous telemetry support

    • Automatic antenna diversity switching

    • Frequency hopping spread spectrum (FHSS)

    • MAVLink protocol framing and status reporting
