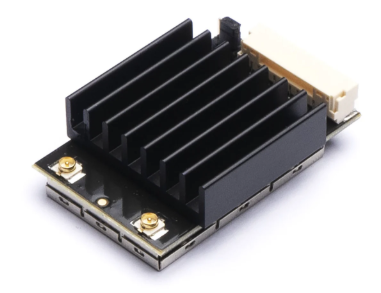

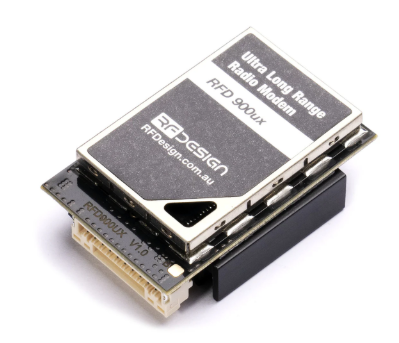

RFD900ux Long‑Range Radio Modem Module

$124.50
$124.50
Write a Review
Earn 62 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Terms & conditions

Order in the next
to get it by
Ask us any Question
Details

Product Overview

A compact yet powerful long‑range telemetry modem module designed for reliable wireless data communication in UAVs, RC drones, robotics, and remote monitoring systems. This module supports high throughput, encrypted long-distance transmission, and is compatible with a range of firmware configurations including point-to-point, multipoint, and mesh networking.

Key Features

  • Multi‑Mode Firmware Support
    Ready-to-use SiK point-to-point firmware with optional asynchronous and synchronous multipoint firmware for versatile networking setups.

  • High Data Rates & Encryption
    Air data rates of up to 500 kbps, plus hardware-accelerated AES encryption ensure efficient and secure transmission.

  • Antenna Diversity for Improved Link Stability
    Two u.FL RF connectors with automatic diversity switching to maintain optimal signal reception and transmission.

  • Powerful 1 W Transmission
    Up to +30 dBm output power, adjustable in 1 dB increments for fine control over range and regulatory compliance.

  • Compact and Lightweight
    Measures approximately 25 × 33 × 10.4 mm and weighs around 10 g, including heatsink and RF shield—ideal for weight-sensitive builds.

  • Full Electrical Protection & Filtering
    All I/O pins include ESD protection and filtering, complemented by TX low-pass filtering and high-performance RX front-end components to reduce noise and interference.

  • Wide Compatibility & Open Configuration
    Fully compatible with prior-generation RFD900x modems. Configurable via AT commands, supporting UART data rates up to 1 Mbps.

  • Long‑Range Capability
    Effective line-of-sight range exceeding 40 km, dependent on antenna and ground station setup.
