This TTL Optical Transceiver Module is available in six configurations, designed for reliable long-distance fiber-optic communication between UAVs and ground control systems. Each module is sold individually and must be paired with its corresponding Sky or Ground terminal for full operation.
Available Module Options (Choose Variant)
Sky Terminals (Airborne Unit – 1310 nm):
-

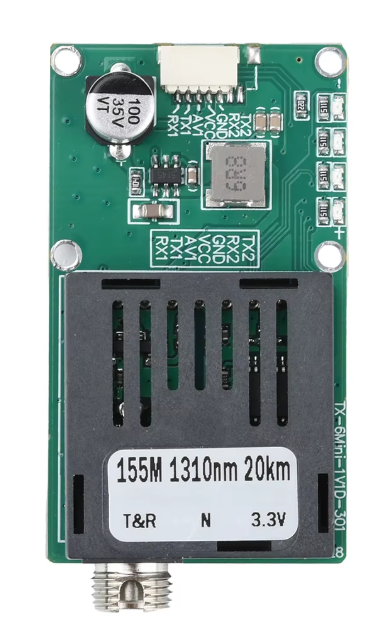

Sky Terminal – 20 KM
-

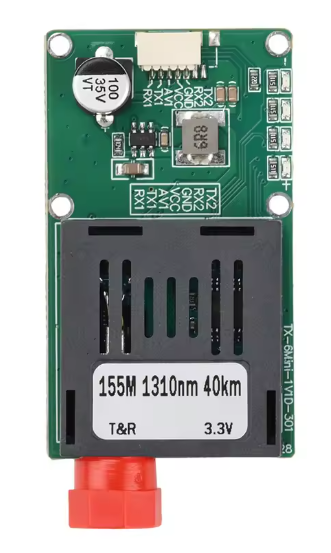

Sky Terminal – 40 KM
-

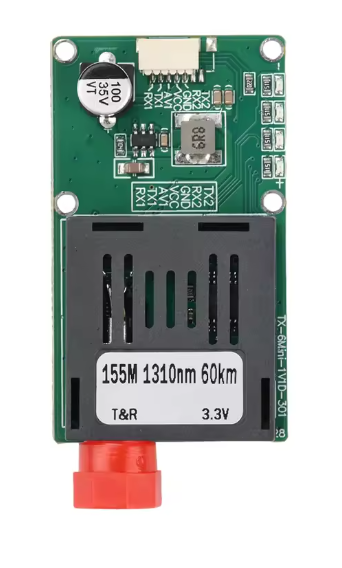

Sky Terminal – 60 KM
Ground Terminals (Ground Station – 1550 nm):
-

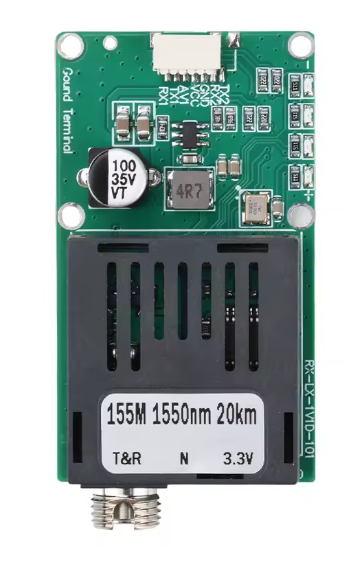

Ground Terminal – 20 KM
-

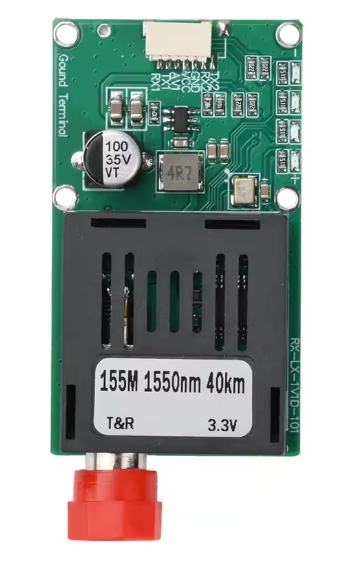

Ground Terminal – 40 KM
-

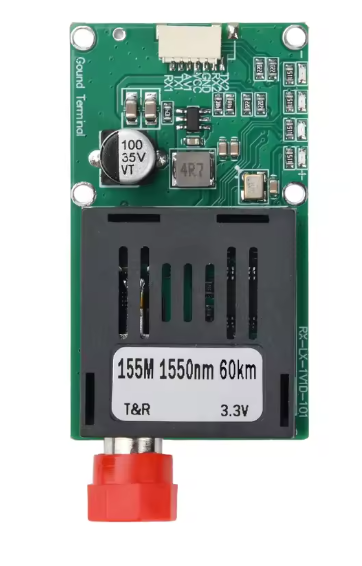

Ground Terminal – 60 KM
Sky and Ground terminals are sold separately. A complete system requires one Sky terminal and one Ground terminal of the same distance rating.
Key Features
-
Wide Voltage Input (DC 5.5–26 V): Supports 2S–6S batteries for UAV applications
-
Long-Distance Fiber Communication: Available in 20KM / 40KM / 60KM variants
-
Dual-Wavelength Optical Design:
-
Sky Terminal: 1310 nm
-
Ground Terminal: 1550 nm
-
-
Compact & Lightweight: Only 50 × 29 × 13 mm
-
Multifunction Status LEDs: Power, fiber, video, and data indicators
Technical Specifications
-
Product Type: TTL Optical Transceiver Module
-
Power Supply: DC 5.5–26 V
-
Power Consumption: ≤ 5 W
-
Communication Interface: MX-SH1.0 mm-5P (CRSF / CVBS video)
-
Fiber Interface: FC connector
-
Signals Supported: 1× Analog Video + 1× TTL Data Channel
-
Indicators: Power, fiber, video, data
-
Dimensions: 50 × 29 × 13 mm
